Perform the test using a voltmeter

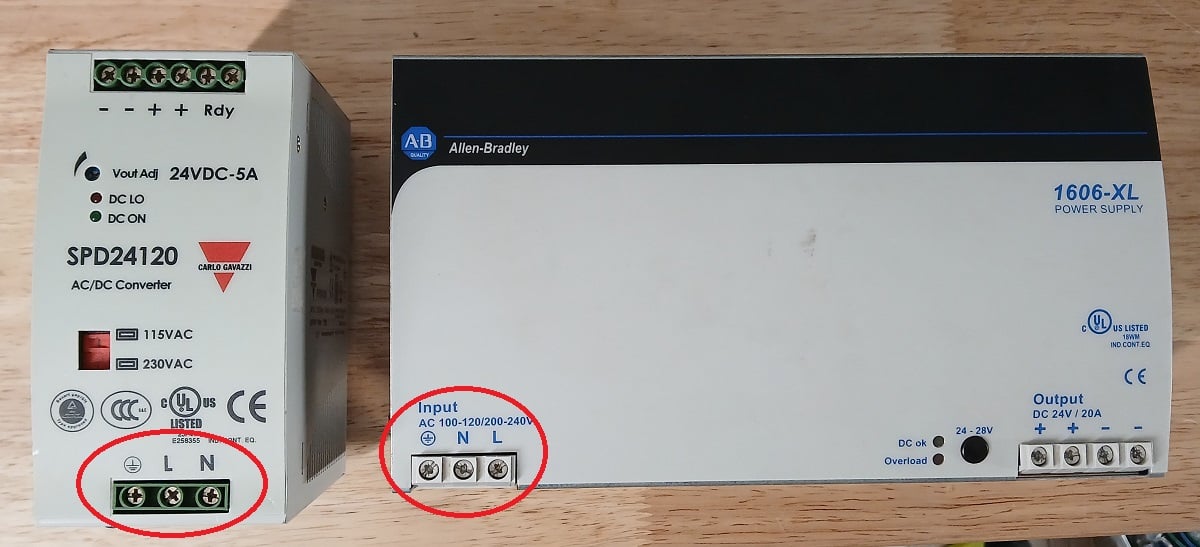

The first step is to use a voltmeter to test the power terminals. But is it more reasonable to test the input terminals or the output terminals first? The answer may depend on the nature of the fault.
If we observe that all the devices powered by this power supply are in the "off" state, then the power supply is likely the main fault point. Here is a key symptom that can help us diagnose the problem. Most power supplies have a "DC normal" or "power" indicator light. If the power supply is working properly, this indicator light will be on. If the indicator light is on, we can proceed to the second step, which is the load test.
If the indicator light goes out, it indicates that the power is not working. At this point, you should first check the input terminals. If the input terminals are receiving normal power supply, we can rule out the problem in the upstream circuit. Most power supplies provide alternating voltage, which can be single-phase or three-phase. Therefore, the voltmeter should be set to the AC voltage mode. If no voltage is detected, check the upstream fuses, circuit breakers or branch circuit breakers.
If the input voltage is within the acceptable rated range, the output voltage becomes the primary factor determining whether the equipment can receive normal power supply. The output terminal should be tested to obtain a value very close to the rated output voltage. When conducting this test, please use the DC voltage mode of the multimeter.
Voltage regulation
Industrial power supplies can sometimes perform voltage regulation within a small range to fine-tune the output. However, this is intended to compensate for load effects rather than to address faults that occur after long-term use. You should adjust the voltage at the time of system startup and installation after all devices are running. If the voltage drops suddenly after the power supply has been in operation for many years, the voltage regulation function should not be used to increase the voltage.
Line board test
Almost all control cabinets use terminal blocks to distribute power and control signals. The positive and negative poles of the power supply are usually transmitted through wires to these distribution points. If the power supply is difficult to access, find these terminal blocks to conduct voltage output tests.

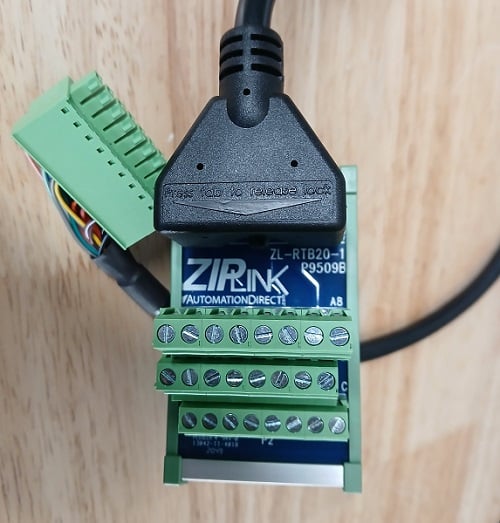

Sometimes, the output voltage is too low to conduct the test, such as the USB data cable of a mobile phone charger. Sometimes, the connection terminals are extremely difficult to reach and are blocked by the cables. If the test is crucial, a splitter board can be purchased. These splitter boards can convert the thin or hard-to-reach cables into a larger circuit board with easier-to-operate connection terminals. I usually keep several of these splitter boards in my workshop.
Summary
A coherent multi-step process can isolate power failures. First, test the input voltage. Then, verify the output under no-load conditions and after connecting the load separately, so that the source of the fault can be traced. Finally, repair the fault or replace the power supply as needed. Power tests usually do not include tests on internal components, but for high-performance linear power supplies, testing of internal components can be useful. For switching power supplies, component-level tests are almost never conducted.
