IPC707 244-707-000-012 A2-B1-C6.67-D1-E10-F5000-G1 Signal Conditioner
Product informations
Download
Service
| Model number: | IPC707 |
| Catalog: | Vibration Monitoring |
| Weight: | 0.5kg |
| Dimension: | 15.9*17.8*13（CM） |

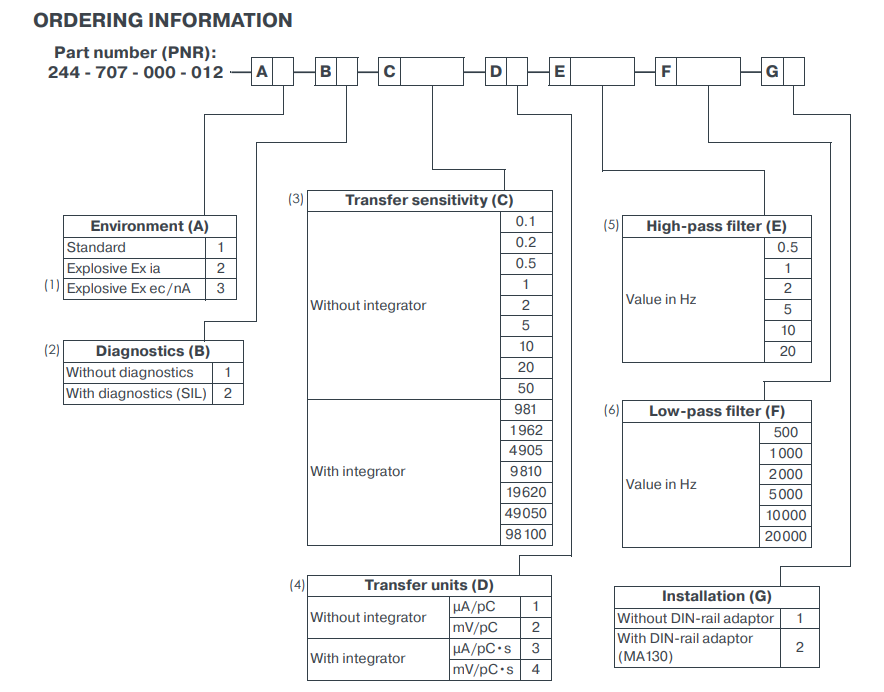

| Ordering information： | 244-707-000-012 |
| Product origin: | Switzerland |
| Payment: | T/T |
| Condition: | Brand New |
| Lead time | In Stock |
| HS Code: | 8537101190 |
| Price： | $1000 |
It operates in the frequency range of 0.5 Hz to 20 kHz and features configurable high-pass/low-pass filters and an optional integrator. It supports both pC to μA and pC to mV transfer functions. It is certified for use in potentially explosive environments.
Customer Feedback and Real-World Case Studies:
🏗️ Dynamic Pressure Measurement on a Gas Turbine Test Bench
- Customer Background: A gas turbine test bench required the measurement of dynamic pressure in the combustion chamber. The sensor was installed in a high-temperature area, and the signal needed to be transmitted over a long distance to the control room.
- Solution: A CPxxx dynamic pressure sensor + IPC707 (current output) + GSI127 were used, achieving a transmission distance exceeding 800 meters.
Customer Feedback (Test Bench Engineer):
⭐⭐⭐⭐⭐ "The combustion chamber pressure measurement requires a high frequency response, and the IPC707's 20 kHz bandwidth fully meets this requirement. We used a pC to μA current output mode, combined with the GSI127, to transmit over 800 meters without any signal attenuation. Replacing the IPC704 with the IPC707 offers more flexible configuration and more comprehensive diagnostic functions."
🔧 Standardized Vibration Monitoring Solution from a System Integrator
- Client Background: A system integrator provides clients with rotating machinery condition monitoring solutions, requiring standardized signal conditioning products, and an increasing number of clients are demanding SIL2 certification.
- Solution: The IPC707 is used as the standard configuration for signal conditioning of CAxxx and CPxxx sensors.
Client Feedback (Company's Technical Director):
⭐⭐⭐⭐⭐ "The IPC707 is our standard choice after upgrading from the IPC704. It is compatible with different piezoelectric materials and offers very flexible configuration—pC to μA for long distances, pC to mV for short distances, all on one card. DIN rail mounting and removable terminals make rack integration easy. SIL 2 and ATEX certifications have helped us win several projects with stringent safety requirements. The BITE diagnostic function has also become a selling point; clients really appreciate this self-diagnostic system."
Core Features:
🔌 Flexible Installation and Connections:

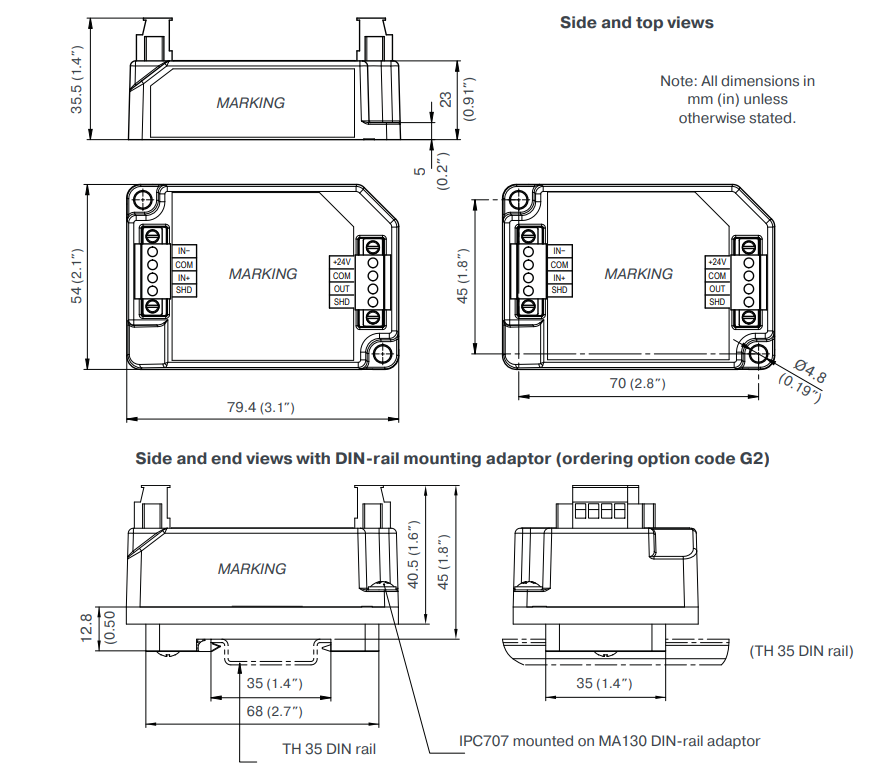

- DIN Rail Mounting: Utilizes an optional DIN rail mounting adapter.
- Screw Mounting: Secured with screws through mounting holes on the housing body (same dimensions as IPC704).
- Removable Screw Terminal Connectors: Can be removed from the housing body for simplified installation.
- Industrial Housing Options: ABA17x industrial housing for additional dust, oil, and/or water protection.
📏 Long-Distance Transmission Capability:
- Maximum Distance: Up to 1 km (1000 m)
- Configuration Requirements: Current output + GSI127 electrical isolation unit.
- Advantages: Longer transmission distance than any other solution.
🔥 Explosion-Proof Certification:
- ATEX Certified: Certified for use in potentially explosive atmospheres.
- Suitable Areas: Hazardous locations such as gas turbine enclosures and petrochemical plants.
